Zowell can perform refitting of electric pallet jack trucks according to the practical requirements of the customer. The following is a case where an electric pallet jack truck was refit to be more suitable for specific applications.
The Zowell electric pallet jack truck is an explosion-proof pallet truck that delivers reliable performance. The design and structure of the truck satisfy all of the safety and performance requirements across many industries. The machine case is equipped with a ground copper woven bag and cable entry to optimize safety. The stainless steel fork ensures the durability and operating stability of the pallet jack truck. The truck is specially designed to be fire and explosion proof.

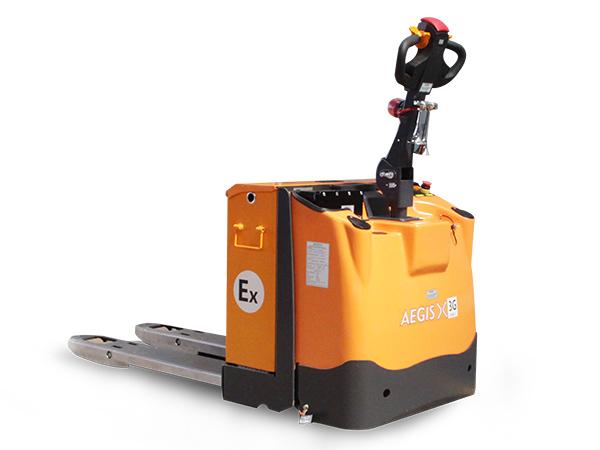

Electric Explosion-proof Pallet Truck
Features
1. Gas perniciousness: 3G; gas group: IIB;
2. Anti-hazard classification: T3 explosion proof battery;
3. Pallet fork: stainless steel;
4. Explosion proof control box and water pump motor;
5. Ground copper woven bag;
6. Copper cable entry.

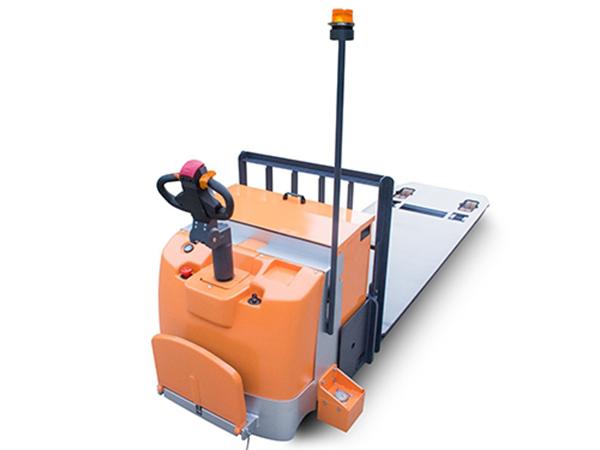

Electric platform truck
The electric platform truck is a heavy forklift truck with reliable performance. It can realize rapid and safe horizontal and vertical transporting. Different from the fixed platform truck, this truck features a lifting function and is equipped with EPS to ensure smooth direction changes. The CURTIS 840 multi-function meter displays the charging level of the battery, operating time, error code, driving speed, and turning angle. The electric platform truck can be used in various working conditions and applications. The length and width of the platform can be customized according to your requirements.
| Features | Drive mode | Motor drive |
| Operation type | Standing or walking | |
| Loading capacity Q (kg) | 7000 | |
| Load center distance C (mm) | 900 | |
| Wheel base Y (mm) | 2163 | |
| Weight | Dead weight (without battery) (kg) | 1500 |
| Truck wheel | Tyre | PU |
| Driving wheel specification (mm) | Φ248 × 75 | |
| Bogie wheel specification (mm) | Φ160 × 50 | |
| Balance wheel specification (mm) | Φ150 × 48 | |
| Front gauge (mm) | 670 | |
| Track rear (mm) | 687 | |
| Basic specification | Min/ max height of the operating handle at the drive position h1 (mm) | 1426/1150 |
| Lifting height h3 (mm) | 310 | |
| Min height of the platform h5 (mm) | 160 | |
| Total length L1 (mm) | 2864 | |
| Distance from front face of the platform to the front L2 (mm) | 1357 | |
| Total width b1 (mm) | 1000 | |
| Platform dimension length/width (mm) | 1800/990 | |
| Min ground clearance M (mm) | 37 | |
| Performance | Moving speed (full load/no-load) (km/h) | 2/2.5 |
| Lifting speed (full load/no-load) (mm/s) | 28/40 | |
| Descending speed (full load/no-load) (mm/s) | 45/40 | |
| Max gradeability (full load/no-load) (%) | 2.5/8 | |
| Braking mode | Electromagnetic brake | |
| Motor | Power of the drive motor (kW) | 3 |
| Lifting motor power (kW) | 3 | |
| Storage battery voltage/capacity (V/Ah) | 24/400 | |
| Weight of storage battery (kg) | 300 | |
| Other | Control mode | Field-effect tube control |
| Whole truck noise Db (A) | < 70 |

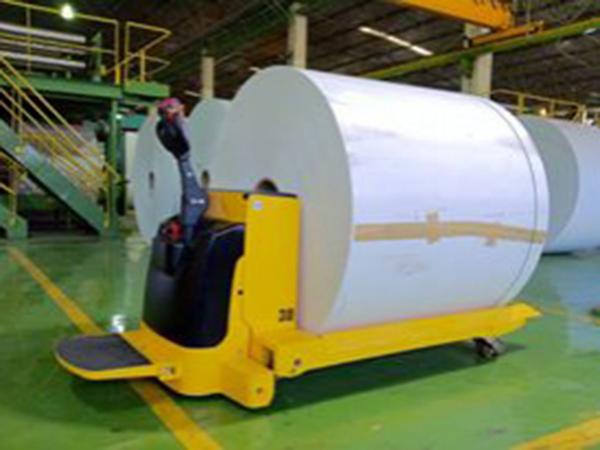

Electric paper roll pallet truck
The electric paper roll pallet truck was designed by Zowell for transporting rolled goods. The design features a diamond-shaped fork and low slope formed by two flat steel beams that are able to fit perfectly inside the tube materials. You can also choose the most suitable fork width according to your transporting requirements. This truck is suitable for the transporting of paper rolls, carpet, textile rolls, cables, wood, steel coils, tires, and other cylindrical materials.
