Load: 1500/2000/2500/3000/3500 kg
Max gradeability: 15%
Radius of turning circle: 2315mm
HS code: 8427109000

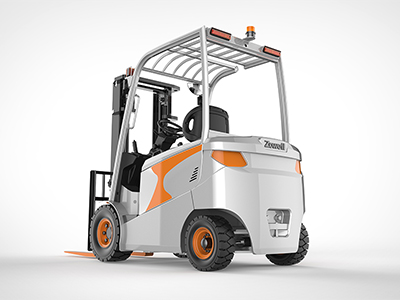

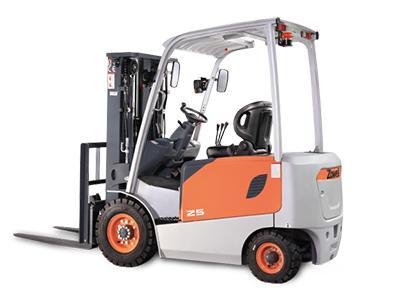

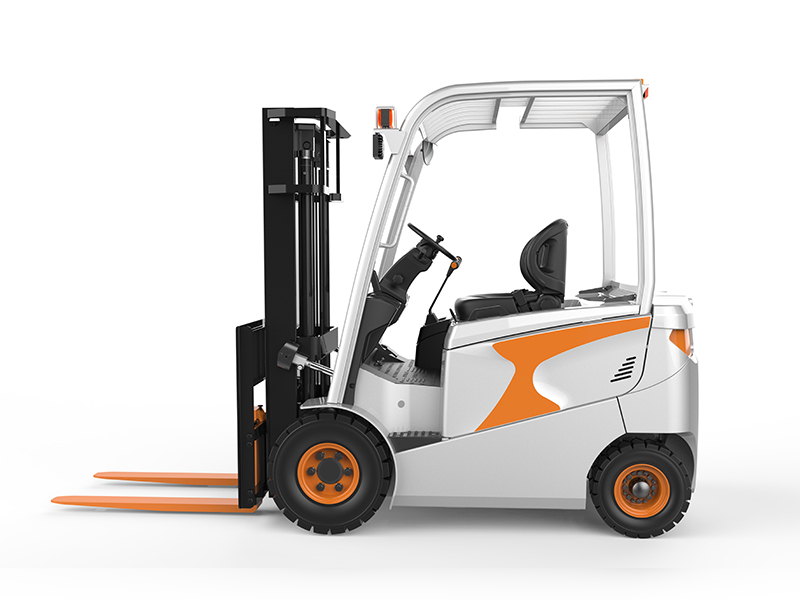

Equipment detail of electric 4 wheel counterbalance forklift trucks
1. Pedal distributing of best angle
The electric 4 wheel counterbalance forklift truck is equipped with a surrounding type seat which is an ergonomic design. It allows for waist adjustment and helps the operator maintain proper driving posture.

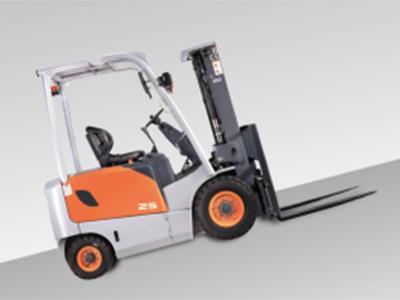

2. Larger gradeability
The gradeability can be up to 15%. The climbing speed can be up to 4km/h even when fully loaded.

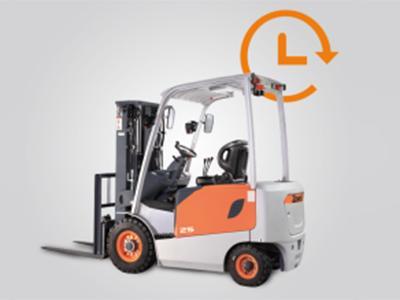

3. Cruising ability
The durable battery and improved performance and efficiency allocation can greatly increase the cruising ability of the forklift truck which means that the working period can be increased by 10%.

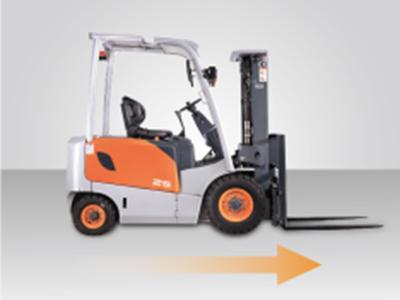

4. Faster moving speed
Fully loaded speed can be up to 14km/h.

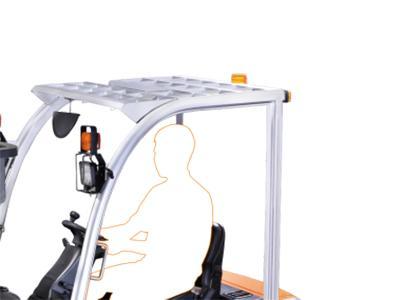

5. High intensity overhead guard
The overhead guard is made of an irregular polygonal extruded material which delivers good compressive resistance and impact resistance in order to ensure the intensity of the overhead guard. Meanwhile, it can protect the driver from being hurt by falling materials.
6. High position steering node
The lateral moving is highly stable to reduce rollover.
7. Superior noise reduction technology
The reasonable distribution and design of the noise reduction technology effectively quiets the forklift.
8. Fully AC system
This truck has superior performance control. The motor is always maintenance free.

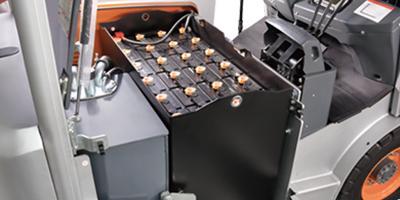

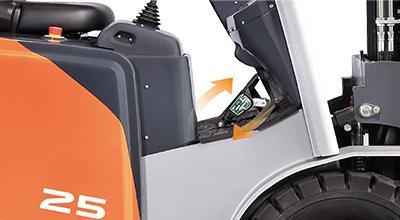

9. The battery can be loaded and unloaded at the side so that the time of changing battery can be effectively reduced and the working efficiency can be improved, especially for the working condition with higher working intensity. There are optional batteries such as FAAM and GS.
10. 70% of the truck adopts molded components which can ensure the reliability of the whole truck.

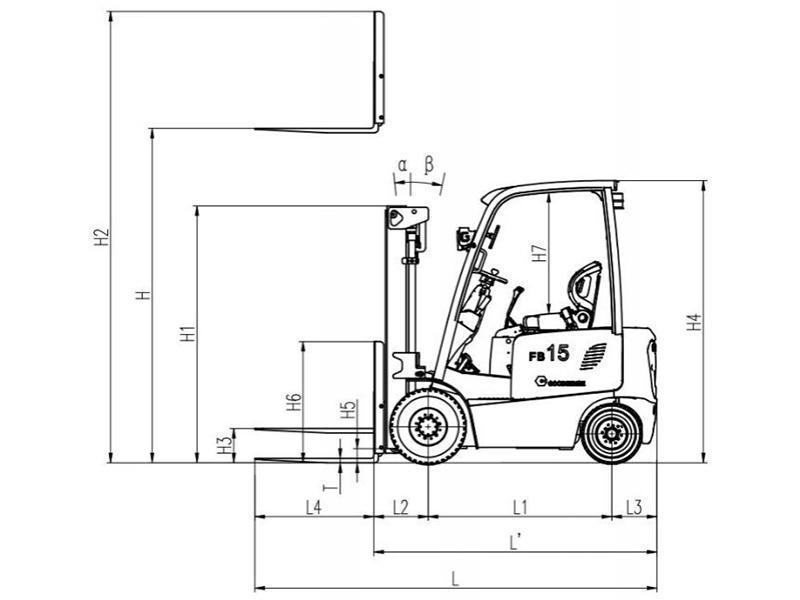

|Rated load (kg)||1500||1800||2000||2500||3000||3500|
|Load center (mm)||500||500||500||500||500||500|
|Dead load (kg)||3280||3400||4170||4410||5100||5350|
|Tyre||Pneumatic tyre||Pneumatic tyre||Pneumatic tyre||Pneumatic tyre||Pneumatic tyre||Front wheel: Pneumatic tyre|
|Wheel number (front/back)||2 driving wheel/2||2 driving wheel/2||2 driving wheel/2||2 driving wheel/2||2 driving wheel/2||2 driving wheel/2|
|Back tyre||5.00-8-10PR||5.00-8-10PR||18×7-8-14PR||18×7-8-14PR||18×7-8-14PR||18×7-8(Solid Tyre)|
|Front gauge (mm)||890||890||960||960||1000||1000|
|Track rear (mm)||920||920||950||950||980||980|
|Wheel base (mm)||1420||1420||1510||1510||1700||1700|
|Lifting height (mm)||3000||3000||3000||3000||3000||3000|
|Fork dimension (mm) (L×W×T) (mm)||920×120×35||920×120×35||1070×120×40||1070×120×40||1070×125×45||1070×125×50|
|Gantry tilting angle (front/back) (°)||43263||43263||43263||43263||43263||43263|
|Total height (with min gantry height) (mm)||1995||1995||2070||2070||2115||2150|
|Unsupported height (mm)||105||105||125||125||125||125|
|Height with max gantry height (with load backrest) (mm)||3940||3940||4070||4070||4175||4175|
|Load backrest height (mm)||910||910||1045||1045||1140||1140|
|Outer width of fork (mm)||240-970||240-970||240-1040||240-1040||250-1100||250-1100|
|Total length (without/with fork) (mm)||2190/3110||2190/3110||2360/3430||2360/3430||2610/3680||2615/3685|
|Total width (mm)||1090||1090||1160||1160||1230||1230|
|Height of overhead guard (mm)||2195||2195||2240||2240||2250||2250|
|Distance between seat to the overhead guard (mm)||1020||1020||1020||1020||1020||1020|
|Front overhang (mm)||420||420||465||465||480||485|
|Rear overhang (mm)||350||350||385||385||430||430|
|Min turning radius (mm)||2010||2010||2075||2075||2350||2350|
|Ground clearance (mm)||110||110||110||110||140||140|

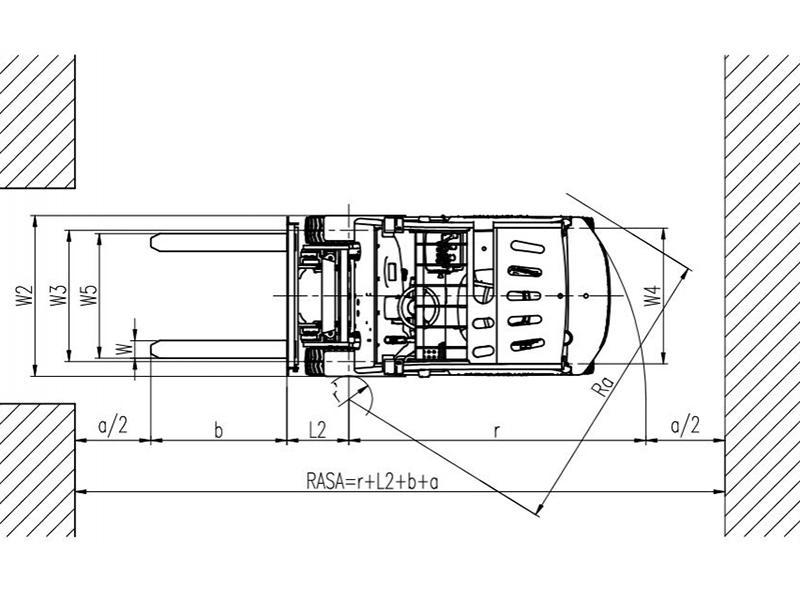

|Right angle stacking channel width, pallet 1000x1200 (1000 along the side of the fork) (mm)||2050||2050||2250||2250||2425||2425|
|Right angle stacking channel width, pallet 1000x1200 (1200 along the side of the fork) (mm)||3600||3600||3740||3740||4070||4070|
|Moving speed full load/no load (km/h)||13/14||13/14||13/14||13/14||13/14||13/14|
|Lifting speed full load/no load (mm/s)||320/380||300/380||300/380||270/380||300/380||280/360|
|Descending speed full load/no load (mm/s)||≤600/≥300||≤600/≥300||≤600/≥300||≤600/≥300||≤600/≥300||≤600/≥300|
|Max gradeability full load/no load (%)||15||15||15||15||15||15|
|Storage battery voltage/capacity (V/Ah)||48/400||48/450||48/560||48/630||80/500||80/550|
|Battery case dimension (mm)||967×393×780||967×393×780||980×515×810||980×515×810||1015×690×815||1015×690×815|
|Motor power||Driving motor (kw)||8||8||11||11||15||15|
|Lifting motor (kw)||8.6||8.6||8.6||8.6||12||12|
|Working pressure (hydraulic system)||14.5||17.5||17.5|
