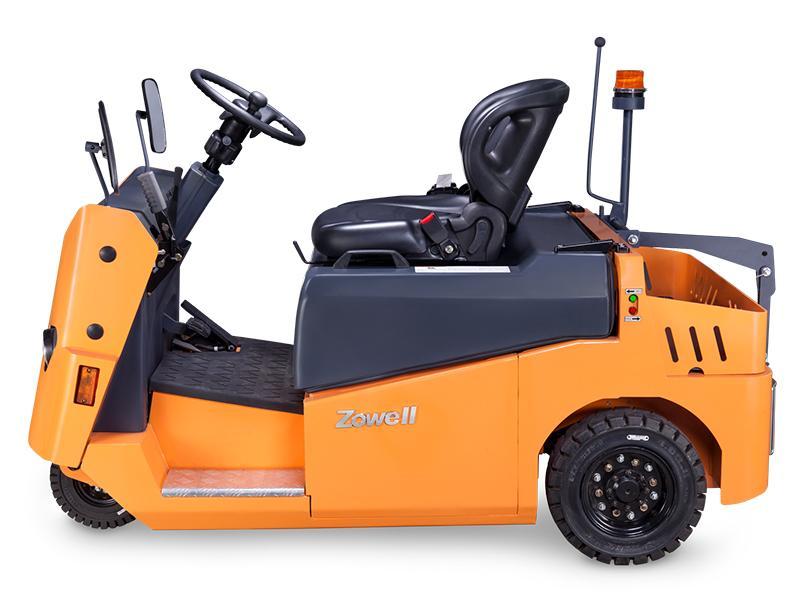

Rated load:6000 kg
Operating mode: sitting type operation
HS code: 8709111000

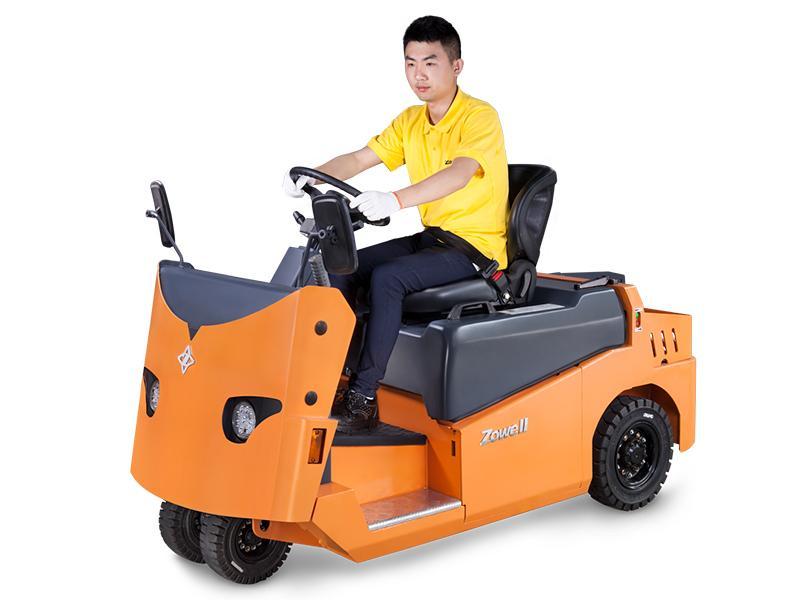

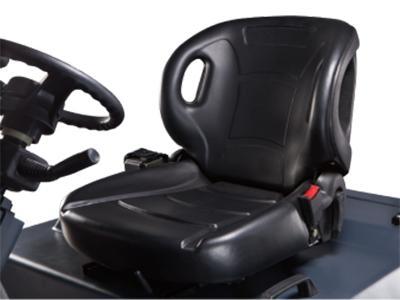

1. Wide and comfortable seat
This seat is designed to relieve fatigue caused by long periods of operation and it also improves overall driving comfort.

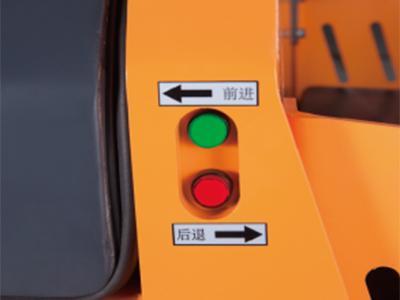

2. Short distance micro motion
Because the controller has a direct control function of micro motion, the driver can realize slow moving forward or backward by touching and holding inching switch without stepping on an accelerator. So the docking of tuggers can be easy and the working efficiency of the tugger can be improved.

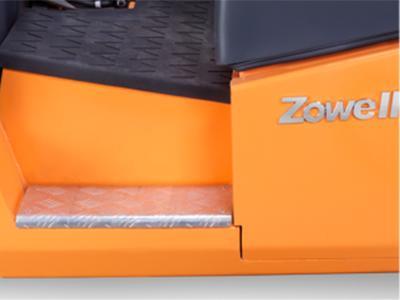

3. Boarding pedal
The low boarding pedal can realize easy boarding of operators. It also has anti-slipping function.

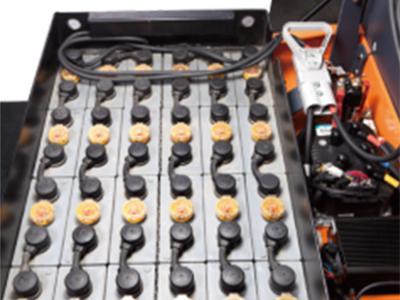

4. Side loading and unloading of storage battery
Side loading and unloading of storage battery can effectively reduce the changing time of batteries so that the working efficiency can be improved. This is suitable for working conditions which features high working intensity. There are optional batteries such as FAMM, GS, HOPPECKE, Trojan.
|Rated traction force (traction ability)||Rated value of 60 min |
|Traction weight||Rated value of 60 min (kg)||6000|
|Moving speed (km/h)||No load||17|
|Max gradeability||No load (%)||30|

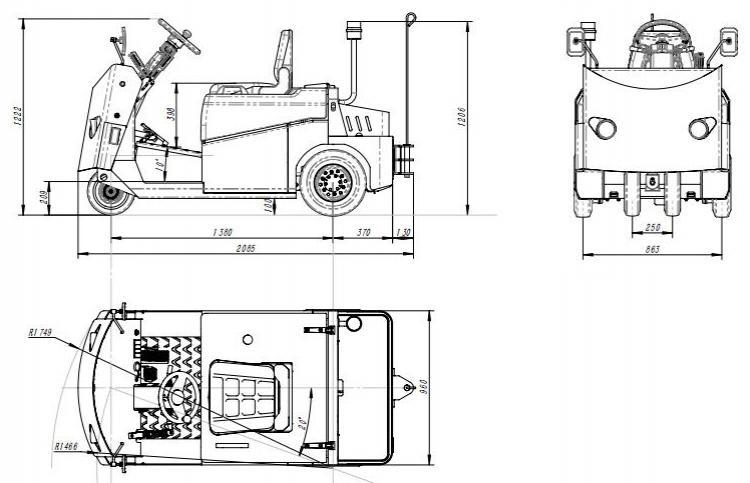

|Total length||With hook (mm)||2000|
|Without hook (mm)||1870|
|Front overhang (mm)||150|
|Rear overhang (mm)||370|
|Total width (mm)||960|
|Total height (mm)||1220|
|Turning radius (mm)||1845|
|Hook length (mm)||136|
|Hook height (mm)||290/340/390|
|Wheel base (mm)||1350|
|Wheel track||Front wheel (mm)||260|
|Back wheel (mm)||860|
|Ground clearance (mm)||100|
|Pedal height (mm)||340|
|Total weight (kg)||With storage battery||1150|
|Without storage battery||610|
|Weight distribution (with standard storage battery) (kg)||Front wheel||370|
|Wheel dimension||Front wheel||3.50-5-6PR|
|Storage battery voltage/capacity (V/Ah)||48/320|
|Storage battery weight (kg)||540|
|Drive motor (kW)||AC 4.0|
|Control mode||Field effect tube control|
