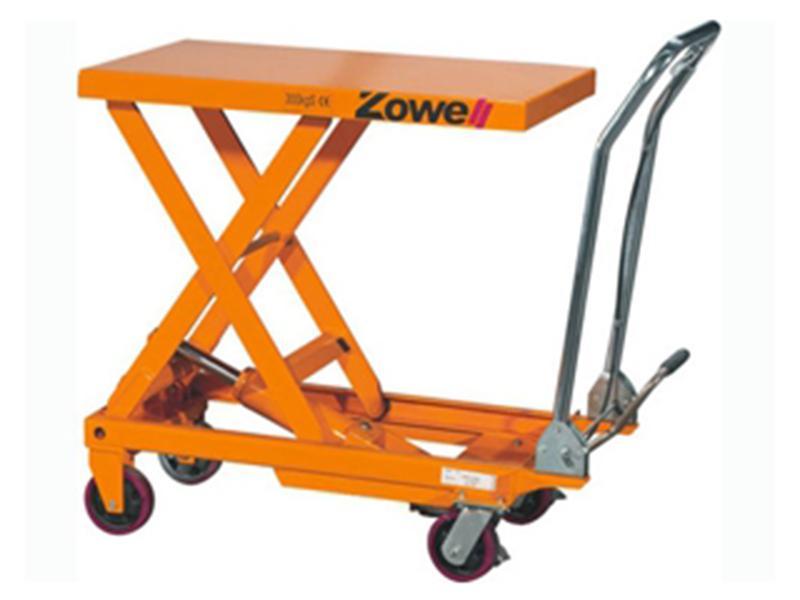

The hydraulic lift table cart is a small lifting machine that is primarily used for the lifting of products within a small height range. It carries out product picking and placing, meaning it offers solutions for small area goods transportation in manufacturing industries, third party logistics industries and retail industries. By using this lift table cart, the storage efficiency and material flow rate are both improved, and transportation costs are reduced, making this a common piece of equipment for the transportation and storage of small objects.
The largest performance features of the hydraulic lift table cart include rapid and convenient transportation, loading and unloading of products. There is no need for operators to lift, bow, or reach out, and the working platform can only be lifted using the hydraulic oil cylinder, which is pedal controlled. This saves labor costs and improves working efficiency, as well as improves the performance of a manual hydraulic lifting platform, as well as increased economic benefits.Detail features
|Rated load (Kg)||300||500||750|
|Min working height of the platform (mm)||270/380||280/390||410|
|Max working height of the platform (mm)||900||900||1000|
|Platform dimension (mm)||820×500×50||820×500×55||1000×512×55|
|Total length (mm)||1070||1070||1350|
|Handle length (from the ground)(mm)||970||970||970|
|Net weight (Kg)||65||75||107|
|Packaging dimension (mm)||900×520×270 |
|20 feet package (units)||168/140||168/140||90|
scissor lift table, manual lift, warehouse lift
