Load: 3600 kg
Max lifting height: 155 mm
Fork length: 1220 mm
HS code: 8427109000

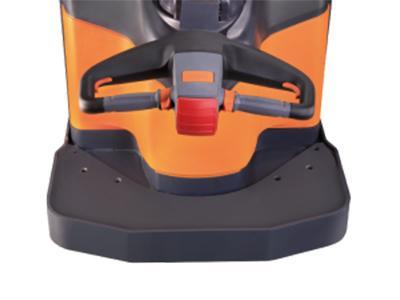

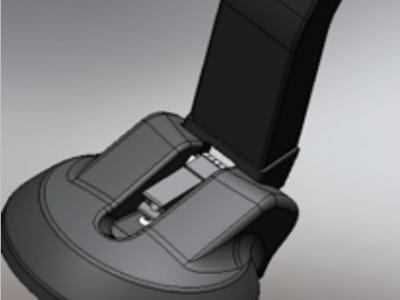

1. The detachable pedal features an ergonomic design that makes it easy to choose specific types and operating mode conversions.
2. Double side loading and unloading makes it easy to change and maintain the storage battery. There are optional battery types to choose from, including FAMM, GS, HOPPECKE, and Trojan.

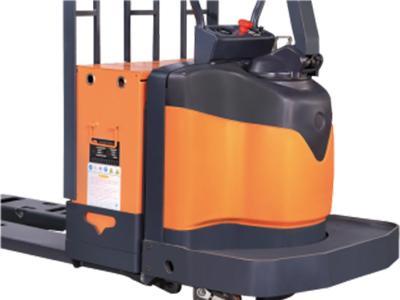

3. The pallet jack truck uses an ergonomic back cover design. Operators can effectively lean on it in order to relieve fatigue and achieve easy truck maintenance.

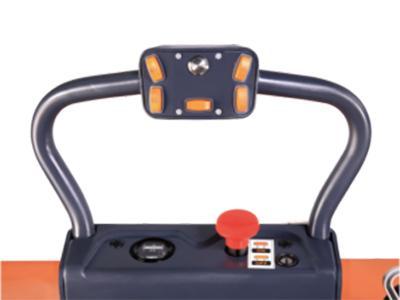

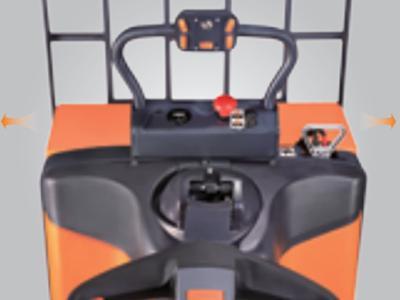

4. The integrated control panel realizes more convenient and reliable control of the truck.

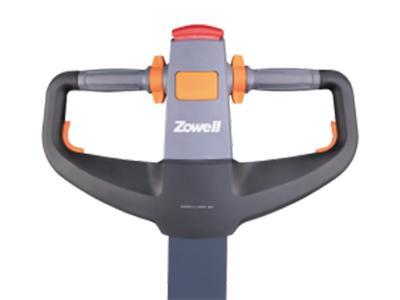

5. The highly efficient and reliable multifunctional handle is imported from FREI, Germany. It has integrated control functions including speed button, horn button, emergency reversing button and lifting button. It adopts ergonomic design so that the operation is easy.
6. The angle of the handle is fixed in order to reduce operation intensity and improve comfort.
7. The moving speed is high, with the maximum speed reaching 13km/h when there is no load.

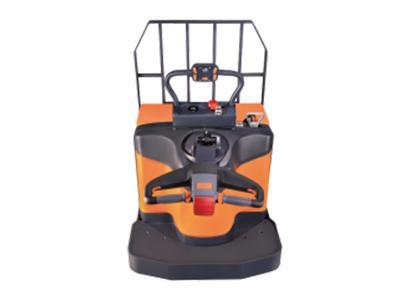

8. The load backrest is made using Q235 iron, and is used to protect both the truck and operators against damage or injury in the event products are dropped, thus improving work safety.
9. Users can choose the battery capacity, with the highest reaching 750AH. The large capacity battery satisfies requirements for high intensity operation.
10. Superior gradeability
The powerful motor and 4 wheel truck structure can provide a superior gradeability, so that the truck has a gradeability for a 5% slope when it is fully loaded.

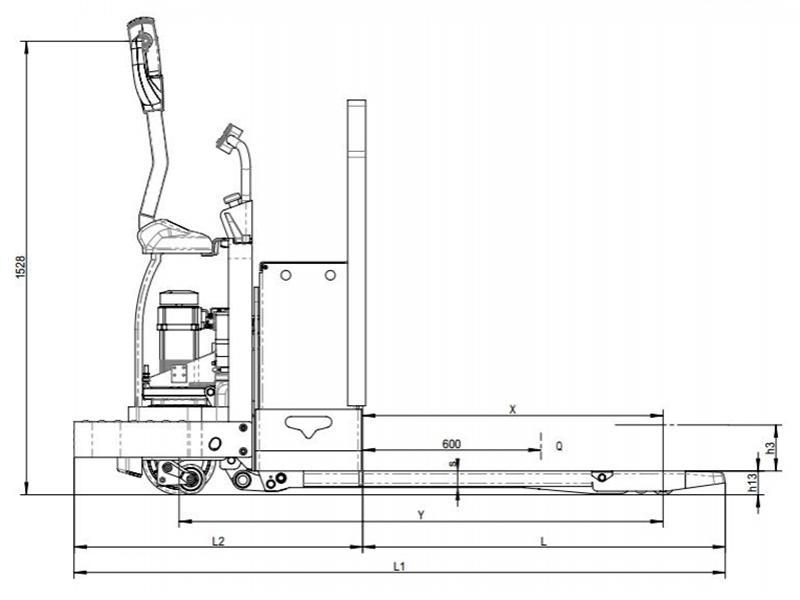

|Rated load Q(t)||3.6|
|Load center distance c(mm)||600|
|Distance from bogie wheel to the front end of the fork x(mm)||1011|
|Wheel base (± 5 mm) y(mm)||1629|
|Dead load (with standard battery) (± 10 %) (kg)||1570|
|Front wheel dimension Ø x w(mm)||Ø 248 x 75|
|Back wheel dimension Ø x w(mm)||Ø80 x 80|
|Wheel number (front/back) (x=driving wheel)||1x + 2/4|
|Rear track (mm)||453|
|Lifting height h3 (mm)||155|
|Handle height in moving position, max/min h14 (mm)||1500/1030|
|Min fork height h13 (mm)||80|
|Whole truck length (± 5 mm) l1 (mm)||2192|
|Distance from front end of the fork to the front truck l2 (mm)||971|
|Whole truck width (± 5 mm)b1/b2 (mm)||915|
|Fork dimension s / e / l (mm)||56/232/1220|
|Fork outer width b5 (mm)||570/685|
|Ground clearance (wheelbase center) m2 (mm)||24|

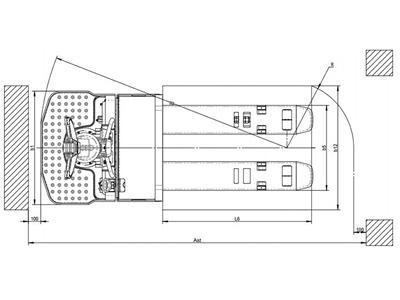

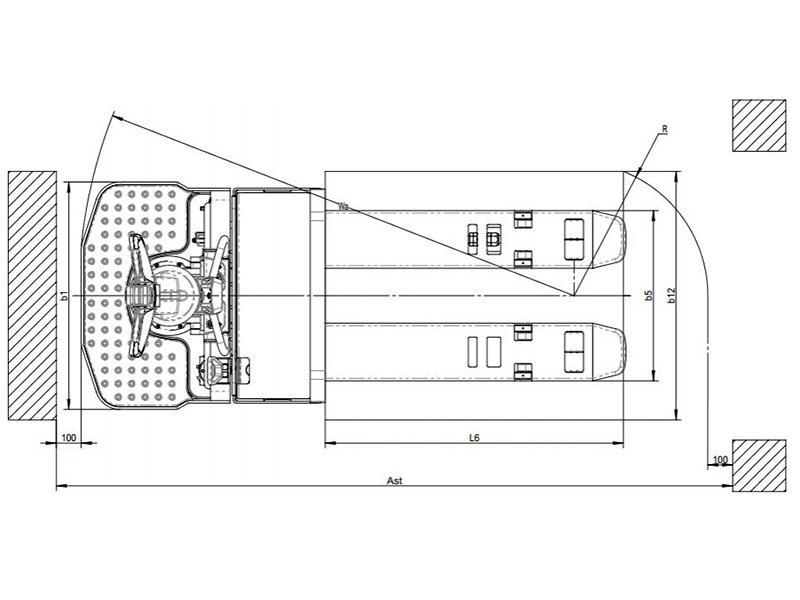

|Channel width, pallet 1000x1200 (1200 along the side of the fork) Ast (mm)||2721|
|Turning radius (min)Wa (mm)||1993|
|Moving speed, full load/no load (± 5 %)(km/h)||10/3|
|Lifting speed, full load/no load (mm/s)||30/35|
|Descending speed, full load/no load (mm/s)||45/40|
|Max gradeability, full load/no load (5min working system)(%)||5/10|
|Driving motor power (kw)||3.2|
|Lifting motor power (kw)||2.2|
|Storage battery voltage/capacity (5h discharge rate) (V/Ah)||24/450|
|Storage battery weight (± 10 %) (kg)||330|
|Noise dB (A)||70|
