2,000kg Electric Tugger
Basic information
Rated load: 2000 kg
Operating mode: sitting type operation
HS code: 8709111000
Certificate: CE/SGS/ISO9001
Detail features

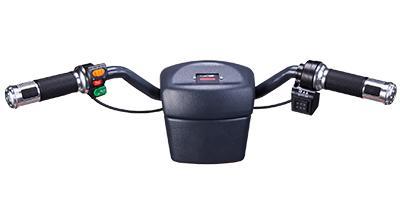

1. Motorbike handle
The electric tugger is equipped with a motorbike style handle which is intuitive and familiar to control. The operation is easy and turning is highly flexible.

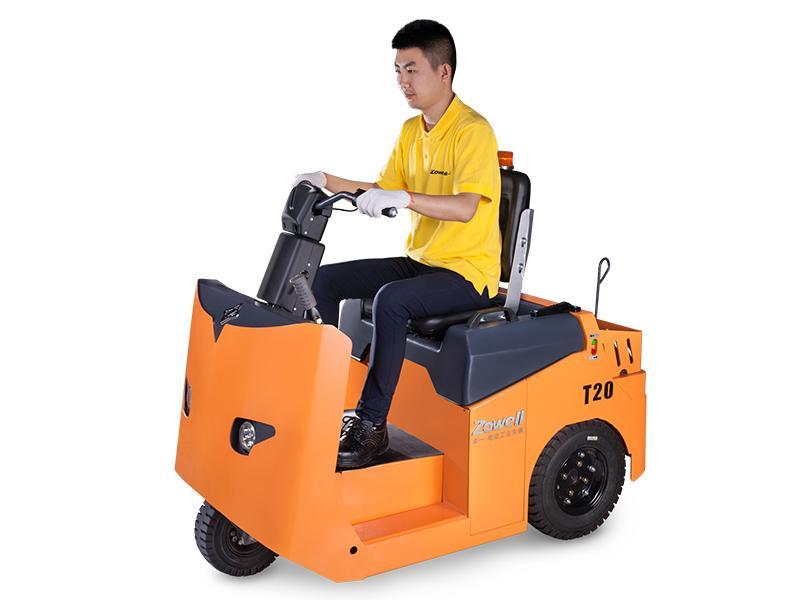

2. Comfortable seat
The wide and comfortable seat is designed to relieve the fatigue of the operators.
| Features | |
| Product type | |
| Driving mode | Electronic |
| Operating mode | Sitting type |
| Rated load (kg) | 2000 |
| Rated traction force (N) | 400 |
| Wheel track (mm) | 1038 |
| Weight | |
| Tugger weight (with standard battery) (kg) | 800 |
| Wheel | |
| Tyre | Rubber tyre |
| Front wheel dimension | 3.50-5 |
| Back wheel dimension | 4.00-8 |
| Wheel number (x=driving wheel, front wheel/back wheel) | 1/2x |
| Front gauge (mm) | 0 |
| Track rear (mm) | 680 |

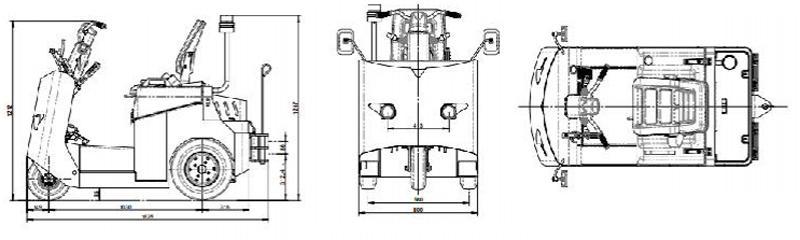

| Basic dimension | |
| Total height (mm) | 1330 |
| Total length (mm) | 1645 |
| Total width (mm) | 800 |
| Ground clearance (mm) | 82.5 |
| Turning radius (mm) | 1520 |
| Performance | |
| Moving speed full load/no load (km/h) | 8/9 |
| Brake mode | Hydraulic brake |
| Motor | |
| Driving motor power (kW) | 2.2 |
| Storage battery voltage/capacity (V/Ah) | 24/180 |
| Other | |
| Controller dB (A) | AC CURTIS |
