Introduction

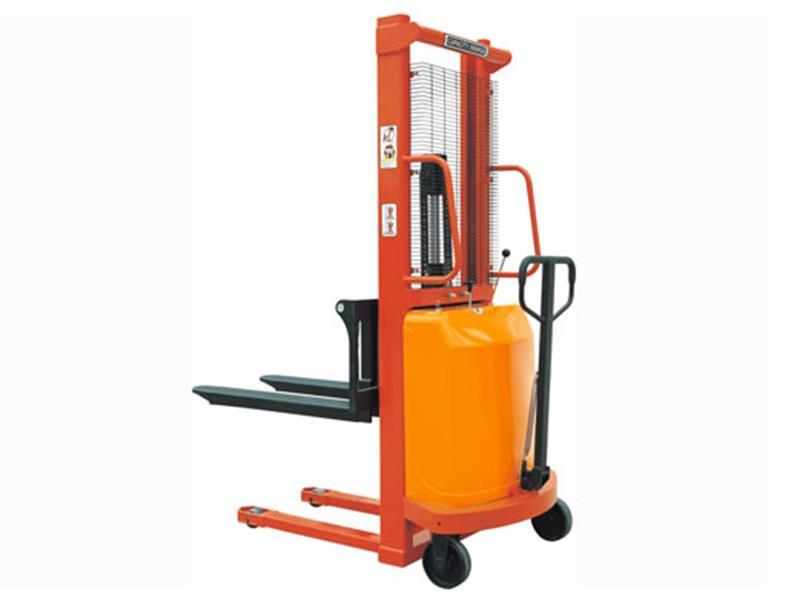

The load range of the semi-electric stacker ranges between 1 to 2 ton. The stacker is used specifically for the transportation, shifting, loading, unloading and stacking of low intensity goods in the warehouse. It features a small turning radius, low center of gravity, easy turning, low energy consumption, low maintenance cost, low noise, flexible operation, safe stable performance, adjustable fork interval and intelligent charging.
Features | ||
Product type | ||
Driving mode | Semi-electric | Semi-electric |
Operating mode | Walking | Walking |
Rated load Q(Kg) | 1000 | 1500 |
Load center C (mm) | 500 | 500 |
Rear overhang X (mm) | 220 | 230 |
Wheel base Y(mm) | 1160 | 1160 |
Dead load (without battery)(Kg) | 440 | 504 |
Wheel | ||
Tyre | Nylon | Nylon |
Bogie wheel dimension (mm) | Φ80×70 | Φ80×70 |
Wheel number front/back (X=driving wheel) | 43133 | 43135 |
Rear track (mm) | 410 | 410 |
Dimension | ||
The height parameters are listed in the following table | ||
Fork ground clearance (min)h5(mm) | 86 | 86 |
Handle ground clearance (max/min)h6 (mm) | 1080/780 | 1080/780 |
Total length L1 (mm) | 1560 | 1570 |
Distance from front end of the fork to the front stacker L2(mm) | 605 | 615 |
Total width b1 (mm) | 800 | 800 |
Fork dimension (forged)s/e/l (mm) | 150/60/950 | 150/60/950 |
Fork outer width b3 (mm) | 560/310-660 | 560/310-660 |
Min ground clearance m (mm) | 30 | 30 |
Right angle stacking channel width, pallet 800x1200 (1200 along the side of the fork) Ast (mm) | 1805 | 1815 |
Turning radius Wa(mm) | 1335 | 1335 |
Performance | ||
Lifting speed full load/no load (mm/s) | 90/140 | 65/100 |
Descending speed full load/no load (mm/s) | Descending by gravity | Descending by gravity |
Braking mode | Foot brake | Foot brake |
Motor | ||
Lifting motor power (kw) | 1.5 | 1.5 |
Storage battery voltage/capacity (V/Ah) | 12/120 | 12/120 |
Storage battery weight (kg) | 35 | 35 |
Whole stacker noise dB(A) | < 70 | < 70 |
Whole stacker height with min fork height | h1 (mm) | 2000 | 2200 | 1750 | 2000 | 2330 |
Free lifting height | h2 (mm) | 1500 | 1700 | / | / | / |
Lifting height | h3 (mm) | 1600 | 1800 | 2500 | 3000 | 3500 |
Whole stacker height with max fork height | h4 (mm) | 2000 | 2200 | 2965 | 3465 | 4060 |
