Introduction

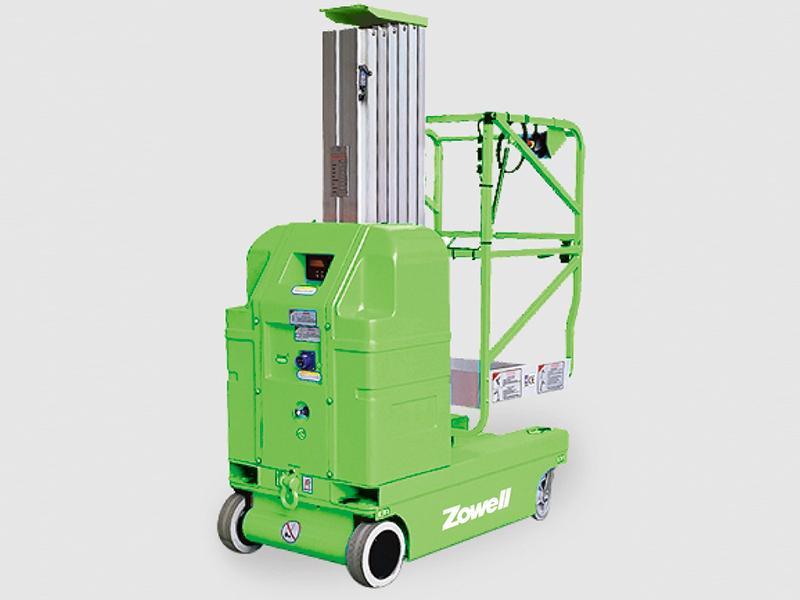

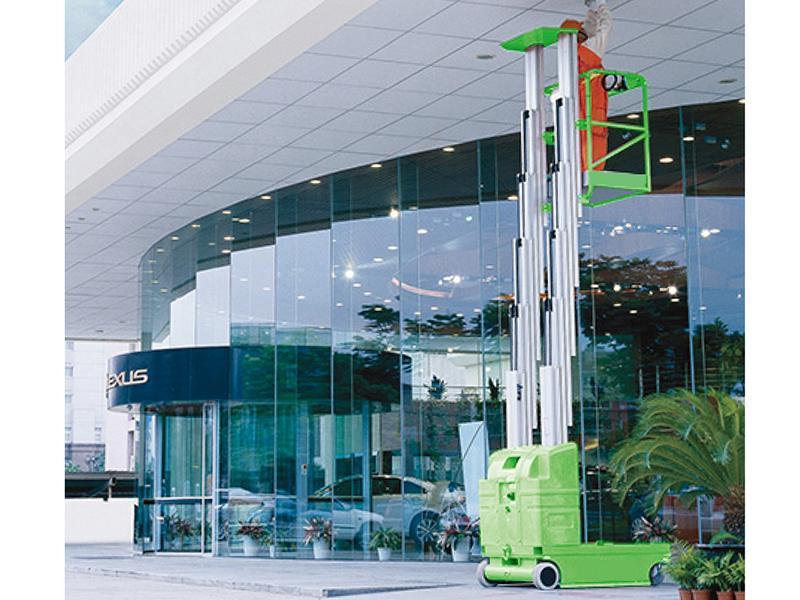

The aluminum alloy aerial work platform features synchronous lifting and descending. It is made of a high intensity aluminum alloy profile, with the deflection and vibration rates being extremely small, so that the platform has an excellent stability. The platform is compact, with lifting and lowering balanced, with easy operation. The aerial work platform is widely used in hotels, factories, supermarkets and other areas where work at different heights needs to be carried out, and with its narrow width, is suitable for a variety of small spaces. It is widely used for changing lamps, cleaning glass and fixing tile and wallpaper, and other tasks. We also offer non-standard products based on application environments, thus suiting different requirements.
Type | ||||
Safe working load (kg) | 125 | 125 | 200 | 150 |
Max platform height (m) | 6 | 7.5 | 7.5 | 9 |
Total length (m) | 1.36 | 1.36 | 1.0 | 1.0 |
Total width (m) | 0.79 | 0.79 | 0.81 | 1.15 |
Total height (m) | 2.08 | 2.08 | 2.08 | 2.08 |
Platform dimension (L × W) (m) | 0.78 × 0.70 | 0.78 × 0.70 | 1.00 × 0.70 | 1.00 × 0.70 |
Min ground clearance | 0.05 | 0.05 | 0.05 | 0.05 |
Wheel base (m) | 1.15 | 1.15 | 1.15 | 1.15 |
Max gradeability | 25% | 25% | 25% | 25% |
Max working angle | 1.5° | 1.5° | 3° | 3° |
Driving wheel | Φ0.23 × 0.08m | Φ0.23 × 0.08m | Φ0.25 × 0.08m | Φ0.25 × 0.08m |
Front wheel | 8in | 8in | 8in | 8in |
Driving motor | 2x24V/0.4kW | 2x24V/0.4kW | 2x24V/0.5kW | 2x24V/0.5kW |
Lifting motor | 24V/2kw | 24V/2kw | 24V/2kw | 24V/2kw |
Storage battery | 2× 12V/115Ah | 2× 12V/115Ah | 2× 12V/115Ah | 2× 12V/115Ah |
Charger | 24V/12A | 24V/12A | 24V/12A | 24V/12A |
Total weight (kg) | 850 | 880 | 1100 | 1250 |
