Load: 3000/5000 kg
1. Regenerative braking
The regenerative braking control system can take the kinetic energy during braking and transform it into electrical energy for storage in the batter. It increases endurance mileage, reduces brake pad wear, and reduces the failure rate of the tugger. Most of all, it reduces the operating cost of the equipment.
2. Electronic control system
The electronic control system is sensitive so that the driver can control the tugger freely. The reliability is high. There are optional controllers supplied by Cutris/ZAPI/PG.

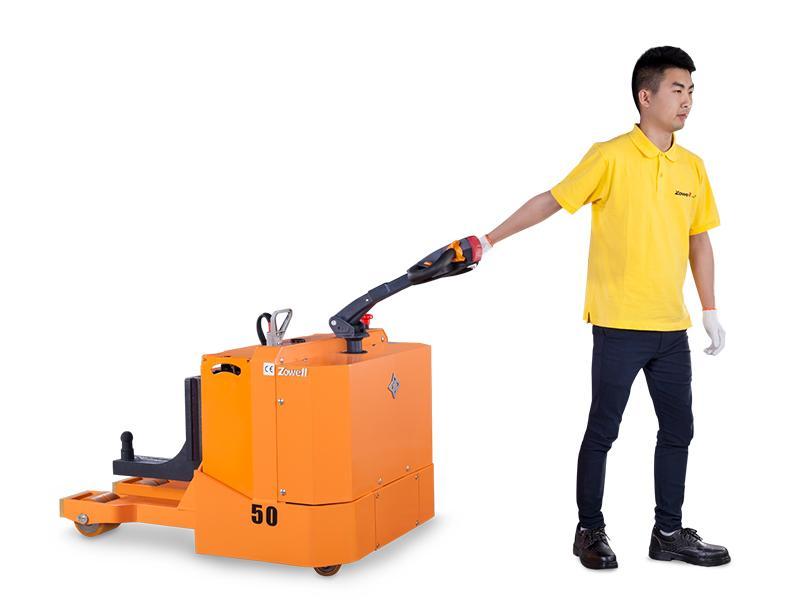

3. Multifunctional handle from FREI, Germany
The multifunctional handle is imported from Germany. The operators can control the moving speed easily by adopting this handle. The handle has an emergency reversing button which can effectively protect the operators from being hurt in accident. The handle can realize braking both in vertical and horizontal position, thus improving tugger safety.
4. Side loading and unloading of storage battery can realize easy maintenance and changing of batteries. There are optional batteries from suppliers including FAMM, GS, HOPPECKE, Trojan.

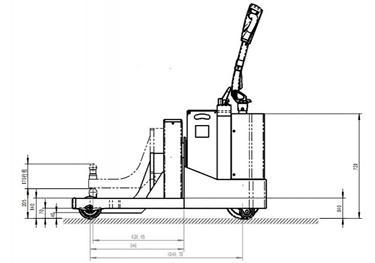

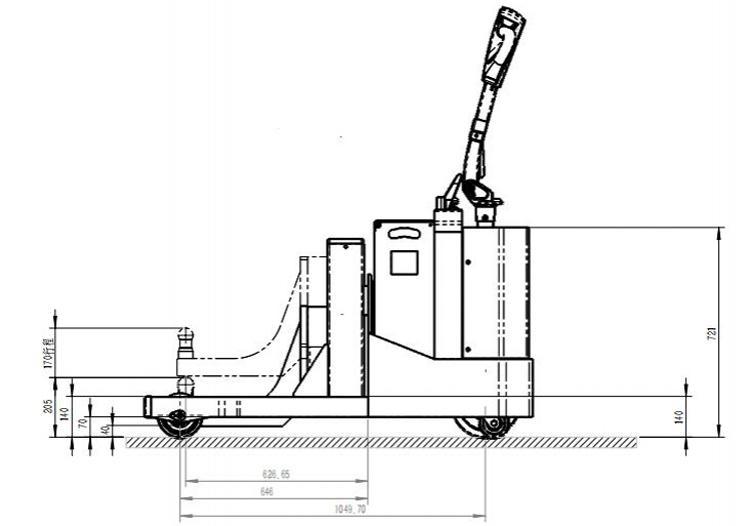

5. Emergency power-off switch: the power can be rapidly cut off in emergency to ensure safety.Structural Drawings Parameters
|Lifting load (Kg)||≤1500kg||≤2500kg|
|Traction load (Kg)||≤3000kg||≤5000kg|
|Hook tensile force (Kg)||97.6kg||195kg|
|Front overhang X (mm)||112|
|Wheel base Y (mm)||999|
|Whole tugger weight (without storage battery) (Kg)||435|
|Driving wheel dimension (mm)||Φ230x75|
|Bogie wheel dimension (mm)||Φ150x60|
|Balance wheel dimension (mm)||Φ100x50|
|Wheel number (x=driving wheel) balance wheel/bogie wheel||1x-2/2|
|Wheel track (driving wheel) (mm)||400|
|Wheel track (bogie wheel) (mm)||568|
|Total height h1 (mm)||1400|
|Lifting height h3 (mm)||378|
|Ground clearance of operating hanlde (max/min) h6 (mm)||1350/800|
|Total length L1 (mm)||1227|
|Distance between front end of fork to the tugger front L2 (mm)||565|
|Total width b1 (mm)||850|
|Min ground clearance m (mm)||70|
|Turning radius Wa (mm)||1200|
|Moving speed full load/no load (km/h)||5.2/6||4.8/5.6|
|Lifting speed full load/no load (mm/s)||40/50|
|Descending speed full load/no load (mm/s)||50/40|
|Max gradeability full load/no load (%)||8/15|
|Driving motor power (kw)||1.1||2.2|
|Lifting motor power (kw)||2.2|
|Storage battery voltage/capacity (V/Ah)||24/210|
|Storage battery weight (kg)||195|
|Control mode||Field effect tube control|
