XEK 1,000-2,000kg Electric Lift Stacker
Basic information
Type: XEK10/15/20
Load: 1000/1500/2000 kg
Max lifting height: 5500 mm
Fork length: 1070 mm
HS code: 8427102000
Certificate: CE/SGS/ISO9001

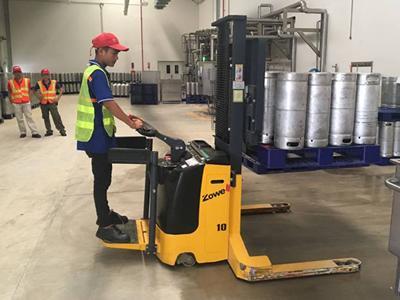

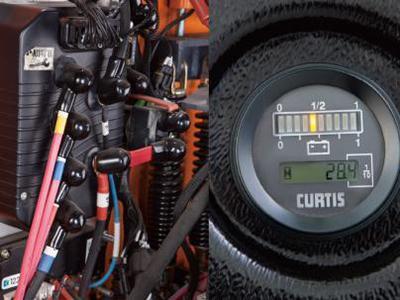

1. Multifunctional meter
Multifunctional meter can display integrated electricity power level, working time and failure code. The operators can know the running condition of the stacker via the meter.

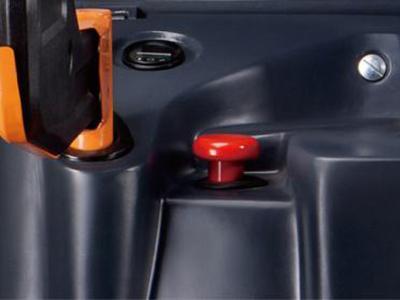

2. Emergency power-off switch
The power can be rapidly cut off in emergency to ensure safety.
3. Safety protection

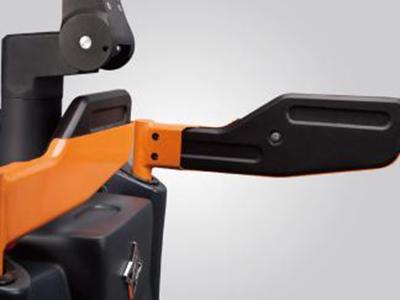

The soft PU armrest features superior resistance to compression and impact, thus reducing indirect injuries caused by stacker operation. This provides safety protection as well as comfort for the operators.

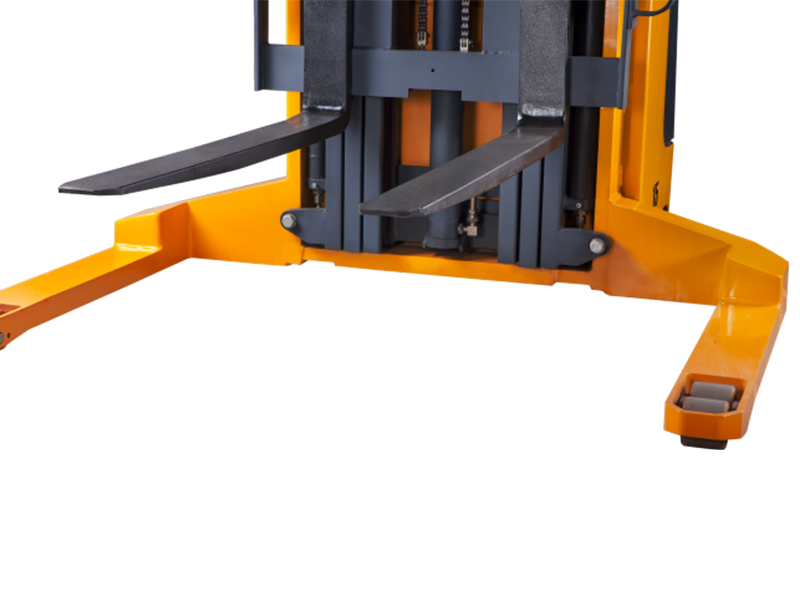

4. Forged fork
The width of the fork can be adjusted within the range of 200-800mm. It is suitable for working conditions with single side pallet or double side pallet.
5. Lifting height limit
The lifting height of this reach truck can be up to 3m. It is precisely controlled.
6. Side loading and unloading of storage battery

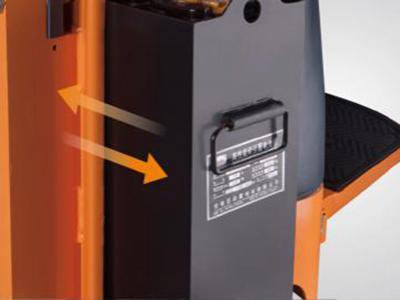

Side loading and unloading of storage battery can realize easy maintenance and battery swapping.

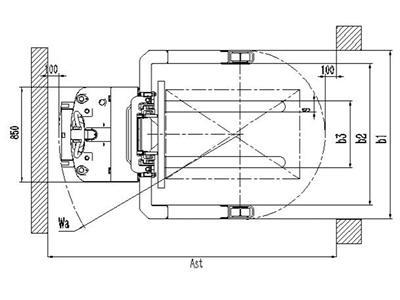

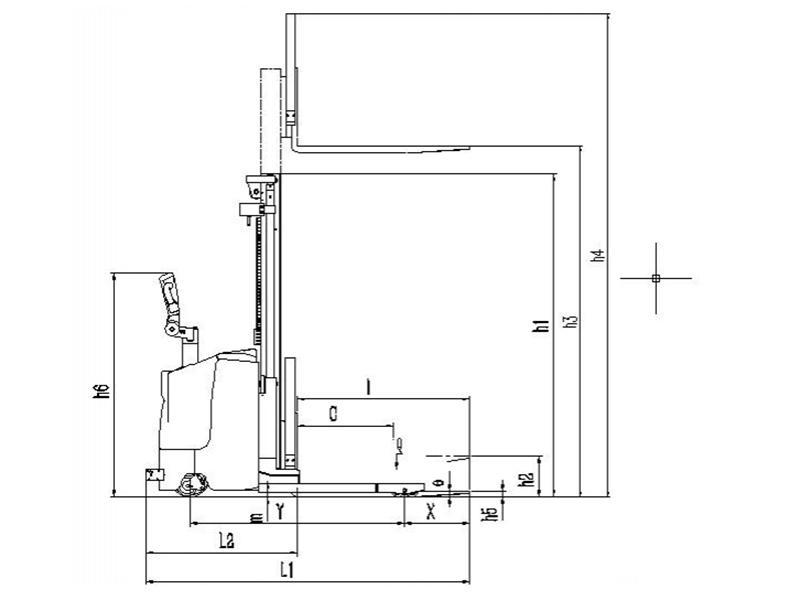

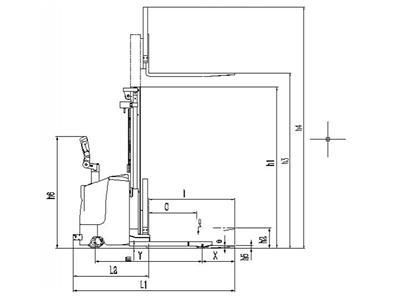

| Product type | |||
| Driving mode | Electric | Electric | Electric |
| Operating mode | Standing | Standing | Standing |
| Rated load Q (kg) | 1500 | 1500 | 2000 |
| Load center C (mm) | 600 | 600 | 600 |
| Rear overhang X (mm) | 403 | 280 | 393 |
| Wheel base Y (mm) | 1284 | 1329 | 1386 |
| Weight | |||
| Dead load (without battery)(kg) | 936 | 942 | 1059 |
| Full load on axle (front/back) (kg) | 816/1300 | 843/1799 | 966/2293 |
| No load on axle (front/back) (kg) | 763/353 | 767/375 | 857/402 |
| Wheel | |||
| Tyre | PU tyre | PU tyre | PU tyre |
| Driving wheel dimension (mm) | Φ250×80 | Φ250×80 | Φ230×82 |
| Bogie wheel dimension (mm) | Φ80×70 | Φ80×70 | Φ80×70 |
| Balance wheel dimension (mm) | Φ125×50 | Φ125×50 | Φ125×50 |
| Wheel number (front/back) (x=driving wheel) | 1x-2/4 | 1x-2/4 | 1x-2/4 |
| Front gauge (mm) | 694 | 694 | 800 |
| Rear track (mm) | 1390 | 1390 | 1390 |
| Basic dimension | |||
| Total height (min fork height) h1 (mm) | 2000 | 2000 | 2055 |
| Free lifting height h2 (mm) | / | / | |
| Lifting height h3 (mm) | 3000 | 3000 | 3000 |
| Max height (max fork height) h4 (mm) | 3957 | 3957 | 3991 |
| Fork ground clearance (min) h5 (mm) | 35 | 35 | 40 |
| Handle ground clearance (max/min) h6 (mm) | 1396/1136 | 1396/1136 | 1390/1130 |
| Total height L1 (mm) | 2003 | 2003 | 2051 |
| Distance from front end of the fork to front stacker L2 (mm) | 934 | 934 | 988 |
| Bottom leg inner width b2 (mm) | 1270 | 1270 | 1270 |
| Total width b1 (mm) | 1510 | 1510 | 1510 |
| Fork dimension (metal plate) s/e/l (mm) | 100/35/1070 | 100/35/1070 | 100/40/1070 |
| Outer width of fork b3 (mm) | 200-800 | 200-800 | 200-800 |
| Min ground clearance m (mm) | 30 | 30 | 30 |
| Right angle stacking channel width, pallet 800x1200 (1200 along the side of the fork) Ast (mm) | 2587 | 2587 | 2643 |
| Turning radius Wa (mm) | 1626 | 1626 | 1682 |
| Performance | |||
| Moving speed full load/no load (km/h) | 5.2/6 | 5.2/6 | 4.6/5.2 |
| Lifting speed full load/no load (mm/s) | 90/120 | 90/120 | 90/120 |
| Descending speed full load/no load (mm/s) | 125/80 | 125/80 | 125/80 |
| Max gradeability full load/no load (%) | 5/8 | 5/8 | 5/8 |
| Braking mode | Electromagnetic | Electromagnetic | Electromagnetic |
| Motor | |||
| Driving motor power (kw) | AC 1.5 | AC 1.5 | AC 1.5 |
| Lifting motor power (kw) | 2.2 | 2.2 | 3 |
| Storage battery voltage/capacity (V/Ah) | 24/180(180/210) | 24/210(210\240\280) | 24/210(210\240\280) |
| Storage battery weight (kg) | 200 | 200\205\295 | 200\205\295 |
| Other | |||
| Control method | Field-effect tube control | Field-effect tube control | Field-effect tube control |
| Whole stacker noise dB (A) | < 70 | < 70 | < 70 |
| Stacker type | Gantry configuration | ||||
| Lifting height | Total height (min) | Total height (max) | Free lifting height | ||
| Single mast | 1600 | 2010 | 2482 | 1128 | |
| 1800 | 2210 | 2682 | 1328 | ||
| Dual mast | 2500 | 1750 | 3457 | 0 | |
| 2700 | 1850 | 3657 | 0 | ||
| 3000 | 2000 | 3957 | 0 | ||
| 3300 | 2150 | 4257 | 0 | ||
| 3500 | 2250 | 4457 | 0 | ||
| 3700 | 2400 | 4657 | 0 | ||
| 3800 | 2450 | 4757 | 0 | ||
| 4000 | 2550 | 4957 | 0 | ||
| Stacker type | Gantry configuration | ||||
| Lifting height | Total height (min) | Total height (max) | Free lifting height | ||
| Single mast | 1600 | 2010 | 2557 | 1053 | |
| 1800 | 2210 | 2757 | 1253 | ||
| Dual mast | 2500 | 1750 | 3457 | 0 | |
| 2700 | 1850 | 3657 | 0 | ||
| 3000 | 2000 | 3957 | 0 | ||
| 3300 | 2150 | 4257 | 0 | ||
| 3500 | 2250 | 4457 | 0 | ||
| 3700 | 2400 | 4657 | 0 | ||
| 3800 | 2450 | 4757 | 0 | ||
| 4000 | 2550 | 4957 | 0 | ||
| Triple mast | 4000 | 1895 | 4957 | 897 | |
| 4200 | 1955 | 5157 | 957 | ||
| 4500 | 2055 | 5457 | 1057 | ||
| 4800 | 2155 | 5757 | 1157 | ||
| 5000 | 2215 | 5957 | 1217 | ||
| 5200 | 2275 | 6157 | 1277 | ||
| 5300 | 2315 | 6257 | 1317 | ||
| 5500 | 2385 | 6457 | 1417 | ||
| Stacker type | Gantry configuration | ||||
| Lifting height | Total height (min) | Total height (max) | Free lifting height | ||
| Single mast | 1600 | 2090 | 2591 | 1099 | |
| 1800 | 2290 | 2791 | 1299 | ||
| Dual mast | 2500 | 1805 | 3491 | 0 | |
| 2700 | 1905 | 3691 | 0 | ||
| 3000 | 2055 | 3991 | 0 | ||
| 3300 | 2205 | 4291 | 0 | ||
| 3500 | 2305 | 4491 | 0 | ||
| 3700 | 2405 | 4691 | 0 | ||
| 4000 | 2555 | 4991 | 0 | ||
| Triple mast | 3500 | 1735 | 4491 | 744 | |
| 4000 | 1895 | 4991 | 904 | ||
| 4200 | 1955 | 5191 | 964 | ||
| 4500 | 2055 | 5491 | 1064 | ||
| 4800 | 2155 | 5791 | 1164 | ||
| 5000 | 2215 | 5991 | 1224 | ||
| 5300 | 2315 | 6291 | 1324 | ||
| 5500 | 2375 | 6491 | 1384 | ||
