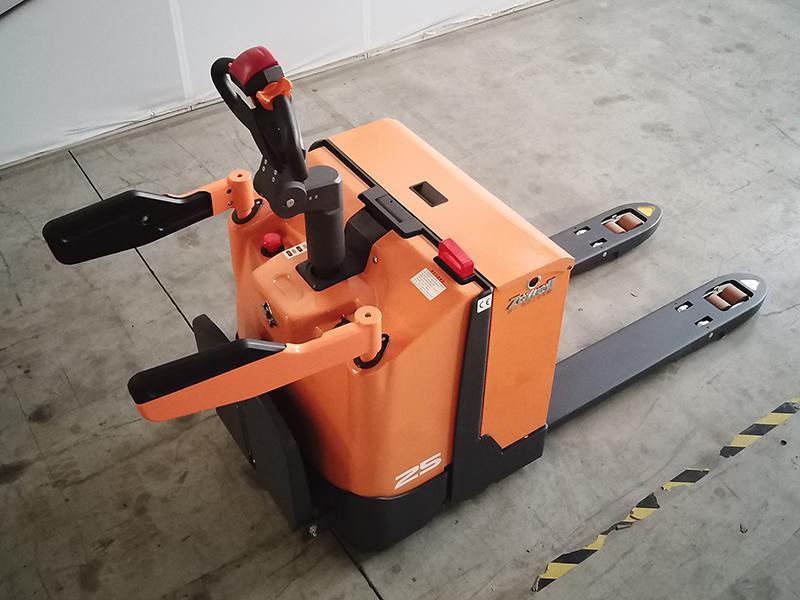

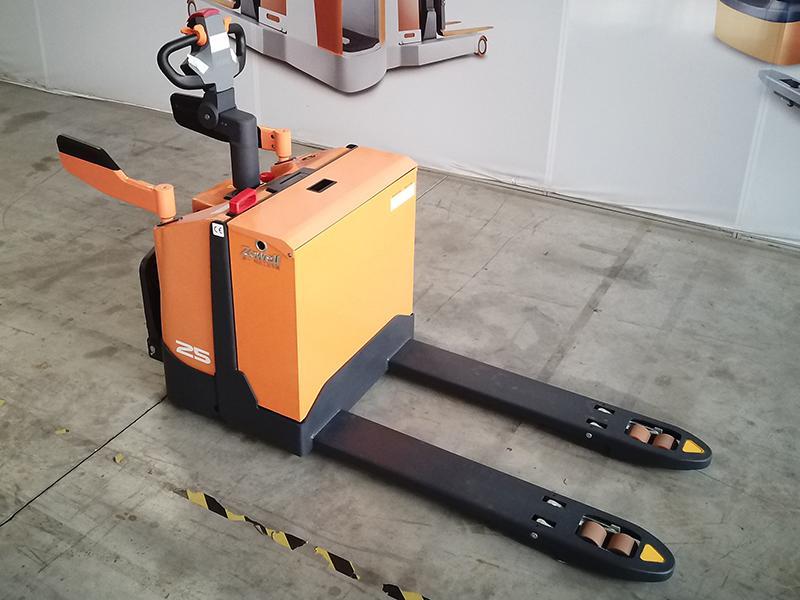

Basic information
Type: XPA20/25/30
Load: 2000/2500/3000 kg
Max lifting height: 205mm
Fork length: 1150 mm
HS code: 8427109000
Certificate: CE/SGS/ISO9001
Detail features

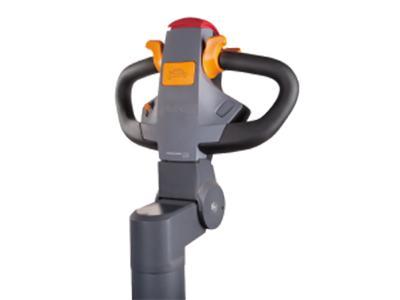

1. Multifunctional handle
The multifunctional handle is imported from Germany. The operators can control the moving speed easily through the use of the handle, which is equipped with an emergency reverse button. This effectively protects the operator against injury in the event of an accident. The handle can achieve braking in both vertical horizontal positions, thus improving the tugger safety.

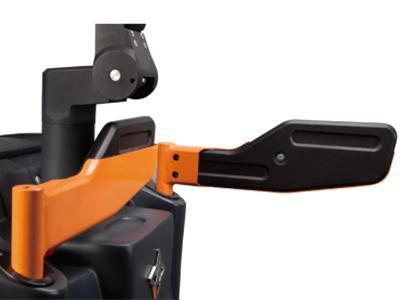

2. Safety protection
The soft PU armrest features a superior resistance to compression and impact, thus reducing indirect hits and injury during stacker movement. This can provide safety protection as well as comfort for the operators.

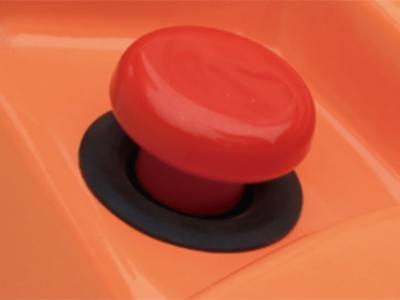

3. Safety switch
The power can be rapidly cut off in an emergency to ensure safety.

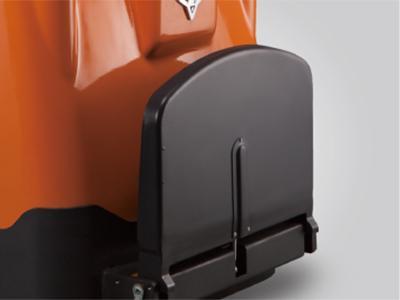

4. Buffered pedal
The foldable pedal saves space when the stacker is not in use. It features an excellent shock absorption function, providing comfort for the operators, and reduce working fatigue.

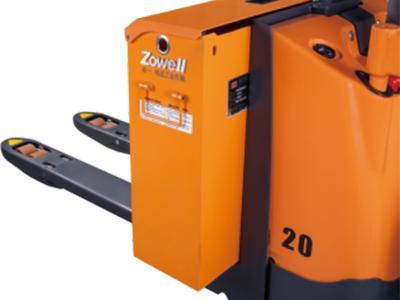

5. Side loading and unloading of storage battery
Side loading and unloading of storage battery makes maintenance and changing easy. Users can select among different brands, including FAMM, GS, HOPPECKE, and Trojan.

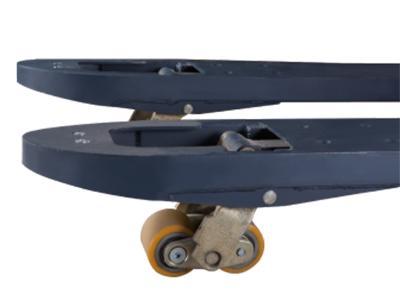

6. Dual balance wheel device
This device has a high passing ability because the running is stable.

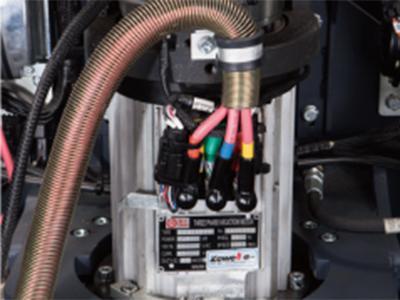

7. AC drive
The maintenance free AC drive motor has no carbon brush, no contacts, a large torque and large output power. It uses a rear axle drive, providing perfect power and gradeability.

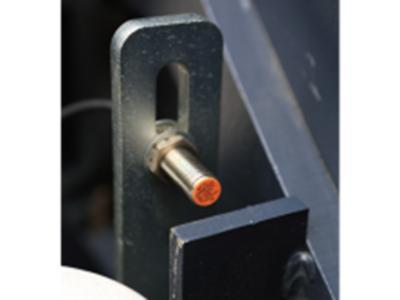

8. Lifting height limit
The lifting height can be precisely controlled to reduce energy waste.

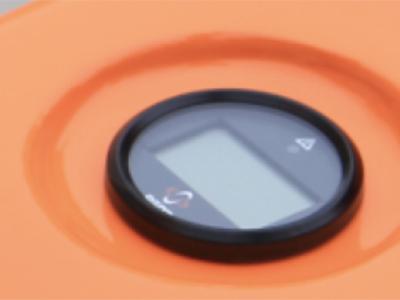

9. Multifunctional meter
A multifunctional meter can display integrated electricity quantity, working time and failure codes. The operators can know the running condition of the stacker via the meter.

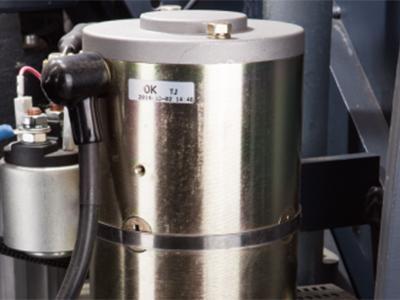

10. High power pump station
The 2.2kw high power pump station can provide a strong power for transporting goods. The noise is low as well. The whole truck noise is lower than 70 dB.
Product type | |||
Driving mode | Electric | ||
Operating mode | Standing | ||
Rated load Q (kg) | 2000 | 2500 | 3000 |
Load center C (mm) | 600 | ||
Rear overhang X (mm) | 191.5 | ||
Wheel base Y(mm) | 1450 | ||
Weight | |||
Dead load (without battery)(kg) | 430 | ||
Full load on axle (front/back) (kg) | 1166/2017 | ||
No load on axle (front/back) (kg) | 550/139 | ||
Wheel | |||
Tyre | Polyurethane | ||
Driving wheel dimension (mm) | Φ230×75 | ||
Bogie wheel dimension (mm) | Φ80×70 | ||
Balance wheel dimension (mm) | Φ100×40 | ||
Wheel number (front/back) (x=driving wheel) | 1x-2/4 | ||
Front gauge (mm) | 518 | ||
Rear track (mm) | 390/500 | ||

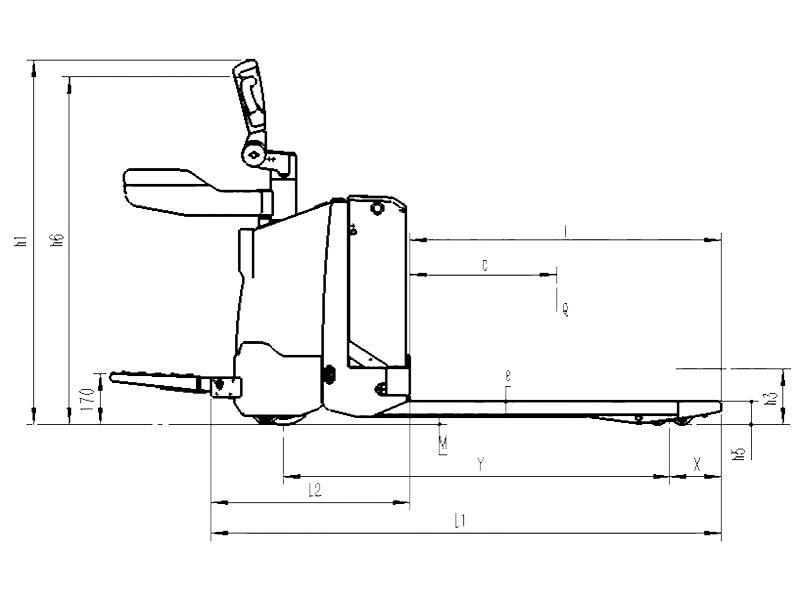

Basic dimension | |||
Total height h1 (mm) | 1326 | ||
Lifting height h3 (mm) | 205 | ||
Fork ground clearance (min) h5 (mm) | 85 | ||
Handle ground clearance (max/min) h6 (mm) | 1246/985 | ||
Total length L1 (mm) | 1908 | ||
Distance from front end of the fork to front truck L2 (mm) | 758 | ||
Total width b1 (mm) | 780 | ||
Fork dimension s/e/l (mm) | 180/56/1150 | ||
Outer width of fork b3 (mm) | 570/680 | ||
Min ground clearance M (mm) | 30 | ||

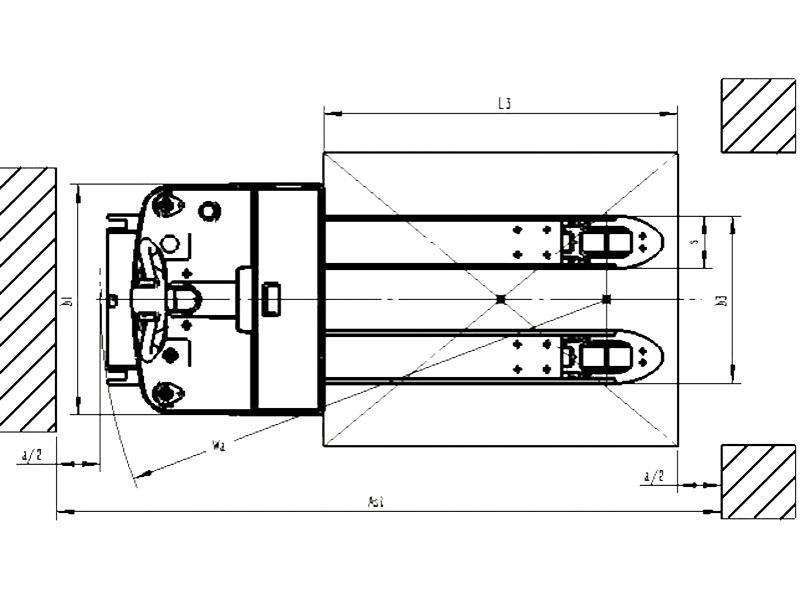

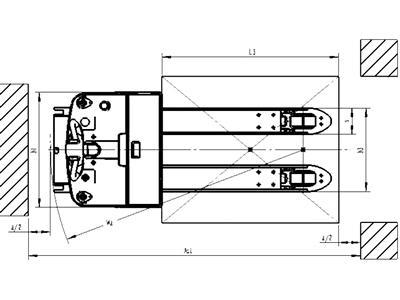

Right angle stacking channel width | 2470 | ||
Pallet 800x1200 (1200 along the side of the fork) Ast (mm) | |||
Turning radius Wa (mm) | 1741 | ||
Performance | |||
Moving speed full load/no load (km/h) | 4.8/5.6 | ||
Lifting speed full load/no load (mm/s) | 40/50 | ||
Descending speed full load/no load (mm/s) | 50/40 | ||
Max gradeability full load/no load (%) | 5/10 | ||
Braking mode | Electromagnetic | ||
Motor | |||
Driving motor power (kw) | 1.5 | 1.5 | 1.8 |
Lifting motor power (kw) | 2.2kw | ||
Storage battery voltage/capacity (V/Ah) | 24/180 | 24/210 | 24/240 |
Storage battery weight (kg) | 180 | 200 | 220 |
Other | |||
Control method | Field-effect tube control | ||
Whole truck noise dB (A) | < 70 |
