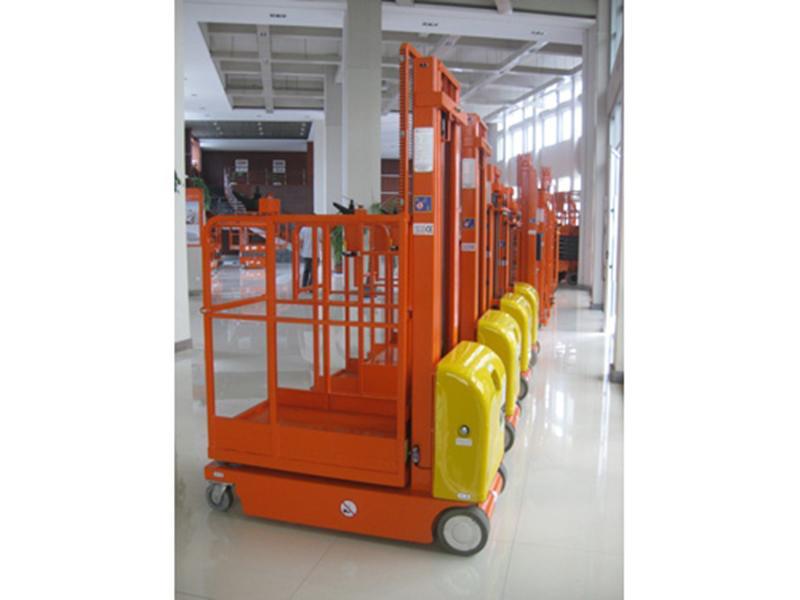

The high level electric order picker is suitable for single worker operation, with the operator able to carry out product sorting on the platform. It is primarily intended for indoor use, but operation is flexible and convenient to make it the best choice for product stacking, storage and retrieval in warehouses and supermarkets. The maximum platform height is 4.5m, with the maximum working height of 6.5m, and a maximum load of 300kg.
|Safe working load||300kg||300kg|

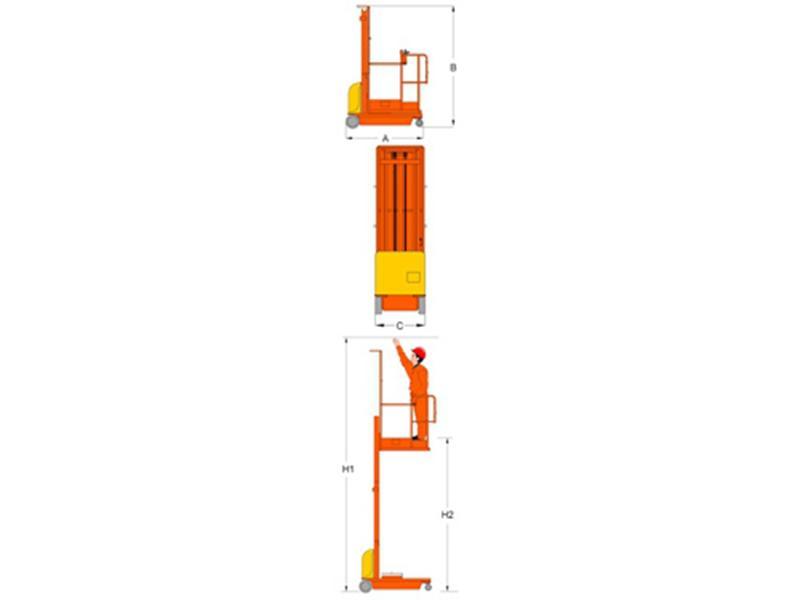

|Max working height (H1)||5.00m||5.50m||5.50m||6.00m||6.50m|
|Max platform height (H2)||3.00m||3.50m||3.50m||4.00m||4.50m|
|Total length (A)||1.53m||1.53m|
|Total width (C)||0.70m||0.70m|
|Total height (B)||1.89m||2.14m||1.64m||1.81m||1.98m|
|Min ground clearance||0.04m||0.05m|
|Min turning radius||0||0|
|Moving speed (folding state)||4km/h||4km/h|
|Moving speed (lifting state)||1.1km/h||1.1km/h|
|Lifting/descending speed (s)||20/22||24/26||17/19||20/22||23/25|
|Front wheel||6 in||6 in|
stock picker, aerial picker platform, aerial lift, selector lift
