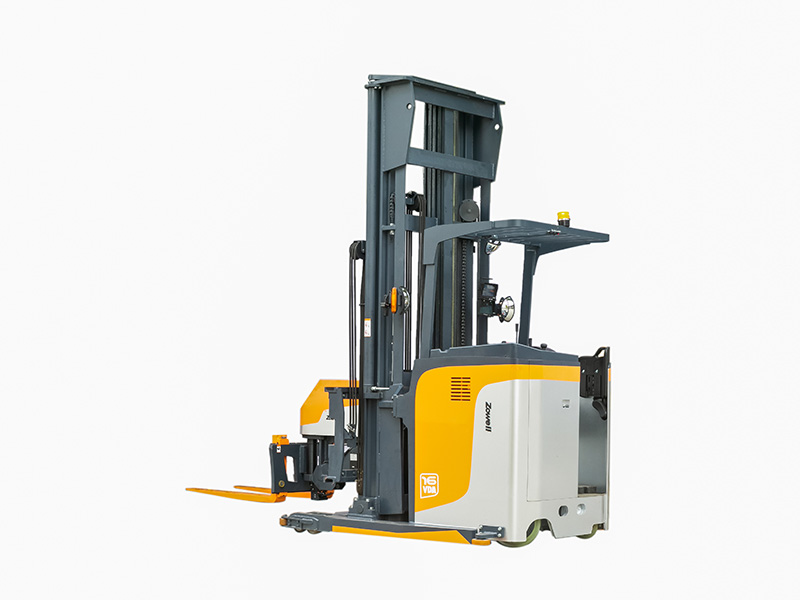

The VNA truck is a narrow aisle forklift. It is equipped with a rotating fork, enabling it to rotate 180 ° to make it an essential solution in tight environments.
Basic information
Max. load Capacity: 1, 600 kg
Max. Lifting Capacity: 9, 000 mm
Operator: Stand-Up
Safety: It is equipped with an electric power assistance steering and wheel display system, dual protection steering system, and real-time monitoring capabilities for the driving wheel position.
Stability: It is equipped with a channel steel mast and reduction drive imported from Germany, ensuring the high strength, high efficiency and stability.
Efficient: When working in the aisle, it uses the fork to rotate up to 180° to pick up and load the cargo on the left and right sides of the aisle. Compared to ordinary forward-moving forklifts, this allows for the number of storage panels in the warehouse to increase by up to 60%.
Energy saving: Equipped with an electric forkhead, more than 50% of energy is saved compared to other forklifts, thus improving the vehicle reliability and ensuring there is no risk of oil leaks.
Ergonomics: Fully enclosed cover design and function to reduce driver fatigue.

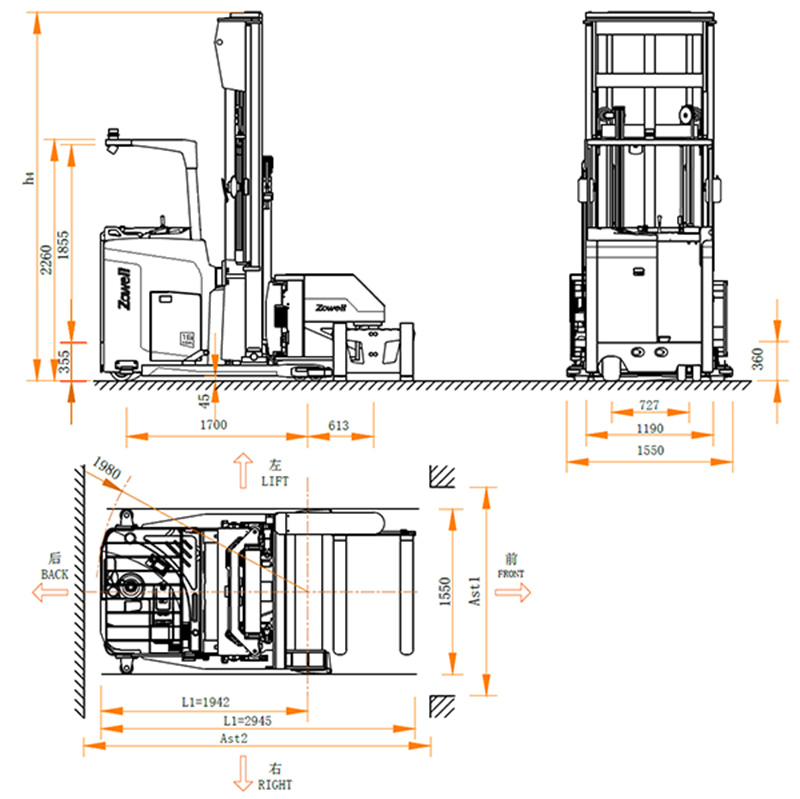

Structural Drawings Parameters| Product type | ||
| Driving mode | Electric | Electric |
| Driving type | Standing on | Standing on |
| Rated load Q(kg) | 1600 | 1600 |
| Load center C(mm) | 600 | 600 |
| Wheelbase y(mm) | 1700 | 1700 |
| Weight | ||
| Truck weight(Include battery)(kg) | 5200 | 5450 |
| Battery weight(±5%)(kg) | 750 | 750 |
| Wheel | ||
| Tires | PU tyre | PU tyre |
| Front-load wheels(Diameter × width) (mm) | φ140×127 | φ140×127 |
| Rear driving wheel(Diameter × width) (mm) | φ380×165 | φ380×165 |
| Tire quantity (Drive/Load wheel/universal wheels) (pcs) | 1X/4/2 | 1X/4/2 |
| Basic dimension | ||
| Lifting height (mm) | 3000-6000 | 4500-9000 |
| Fork rotation degree (°) | 180 | 180 |
| Overhead guard height h5(mm) | 2260 | 2260 |
| Platform height for standing (mm) | 355 | 355 |
| Min ground clearance h8(mm) | 45 | 45 |
| Overall length (fork inside position) l1(mm) | 2945 | 2945 |
| Overall width(with guide wheels)b1(mm) | 1550 | 1550 |
| Fork specification l/e/s(mm) | 1070/125/50 | 1070/125/50 |
| Rear chassis width b2(mm) | 1190 | 1190 |
| Fork width b5(mm) | 425-750 | 425-750 |
| Min turning radius(go straight) Wa(mm) | 1980 | 1980 |
| Min main aisle size (mm) | 3550 | 3550 |
| Min aisle width(length×width) 1200×1000 (mm) |
1600 | 1600 |
| Performance | ||
| Driving speed loaded/unloaded (km/h) | 8/9 | 8/9 |
| Lifting speed loaded/unloaded (mm/s) | 250/300 | 250/300 |
| Lowering speed Loaded/unloaded (mm/s) | 300/300 | 300/300 |
| Gradeability, Loaded/unloaded %(tanθ ) | 4 | 4 |
| Brake | Regenerative | Regenerative |
| Park | Disc brake | Disc brake |
| Motor | ||
| Driving motor (S2-60min) (kw) | AC 6 | AC 6 |
| Lifting motor,(S3-15%) (kw) | AC 12.5 | AC 12.5 |
| Steering motor (kw) | DC 0.4 | DC 0.4 |
| Battery voltage and capacity (V/Ah) | 48/390 | 48/390 |
| Other | ||
| Camera and monitor | Fork camera/Left side camera | Fork camera/Left side camera |
| Full free lift triple masts | ||||||||||
| Model | V
|
|||||||||
| Mast closed height h3(mm) | 2784 | 2950 | 3117 | 3284 | 3450 | 3617 | 3784 | 3950 | 4117 | 4284 |
| Mast extended height h4(mm) | 5450 | 5950 | 6450 | 6950 | 7450 | 7950 | 8450 | 8950 | 9450 | 9950 |
| Free lifting height h2(mm) | 1834 | 2000 | 2167 | 2334 | 2500 | 2667 | 2834 | 3000 | 3167 | 3334 |
| Lifting height h1(mm) | 4500 | 5000 | 5500 | 6000 | 6500 | 7000 | 7500 | 8000 | 8500 | 9000 |
